FieldCare SFE500

Universal device configuration

SFE500

Already purchased this product?

Download in software portal

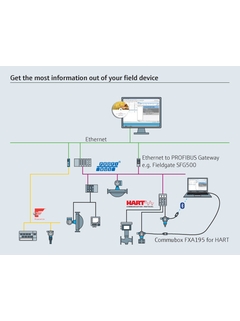

Get the most information out of your field device by using FieldCare — FieldCare - Typical network integrating all relevant communication technologies

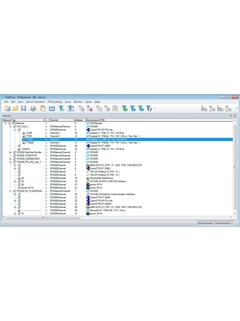

FieldCare SFE500 - Network View — FieldCare - Network View

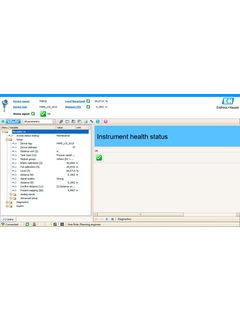

FieldCare SFE500 - Device Type Manager — FieldCare - Device Type Manager

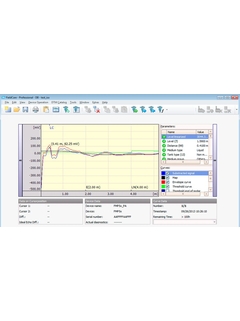

FieldCare SFE500 - DTM Envelope Curve — FieldCare - DTM Envelope Curve

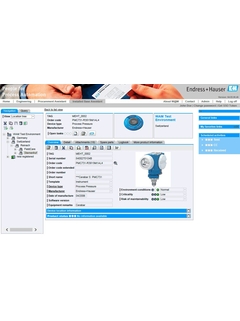

FieldCare SFE500 - Upgrade to Device Configuration Management — FieldCare - Life Cycle Management: Upgrade to Device Configuration Management

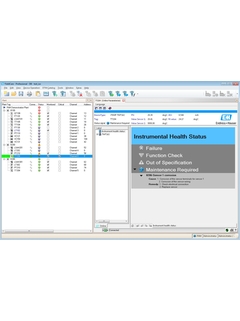

FieldCare SFE500 - Improve asset health and plant performance — FieldCare - Condition Monitoring: Improve asset health and plant performance

FieldCare - Connect and configure Endress+Hauser field devices

Universal field device configuration tool for HART, PROFIBUS, FOUNDATION Fieldbus, Modbus, IO-Link, EtherNet/IP, PROFINET and PROFINET APL. Access software portal

Specs at a glance

Features
- Configuration and commissioning of Endress+Hauser and third-party field devices based on DTM technology
- Plant view: logical view of plant with tagging and archiving.
- Document management: storage of key documents together with the device TAG
- Inventory view: list of all devices in the plant with convenient search and filter function.
Communication protocols
- HART, WirelessHART, PROFIBUS, FOUNDATION Fieldbus, Modbus, IO-Link, EtherNet/IP, PROFINET and PROFINET APL protocols
- Endress+Hauser service protocols (for enabling access to Endress+Hauser instruments independently of the fieldbus protocol.)
CommDTMs
- for HART, PROFIBUS, FOUNDATION Fieldbus
- for Endress+Hauser interface and gateways for remote maintenance

See all specifications

Field of application

FieldCare is Endress+Hauser's universal tool for configuring field devices that provides a range of functionality from device parameterization to engineered Condition Monitoring solutions.

Configuration and management of smart field devices in a facility
Easy device configuration, maintenance management, condition-based maintenance and life cycle management
Can be adapted to different needs depending on the license, and is therefore upgradeable at any time

Benefits

Supplied with complete libraries of certified DTMs (Device Type Manager) and FDI Packages for operation of all Endress+Hauser field devices, has CommDTMs for HART, PROFIBUS, FOUNDATION Fieldbus, IO-Link, PROFINET and Endress+Hauser protocols
Operates all third-party gateways, actuators, remote I/O systems and sensors supporting the FDT and FDI standard
Ensures full functionality for all Endress+Hauser and third-party field devices with DTMs and FDI Packages and offers generic operation with standardized parameters for any third-party field devices that do not have a vendor DTM
Integrates all registered HART and FOUNDATION Fieldbus as well as IO-Link field devices without DTMs using iDTM technology
Scans, identifies, assigns the device driver and adds it to network automatically
Enables connection to the Endress+Hauser life cycle management tool (LCM)

Loading alternative products

Extended selection

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Predecessor

SFE551

SFE552

Could also interest you

Media
Competence brochure FieldCare

FieldCare SFE500 - Universal device configuration software tool
More information
Media
Innovation brochure DeviceCare

The fastest way to configure Endress+Hauser field devices is by using our dedicated tool DeviceCare.
More information
Related topics
Access software portal

Software, updates and complete device driver libraries are downloadable in the Software Portal. The Software Portal also enables you to activate your software product and to manage software licenses.
More information

Measuring principle

Plant Asset Management
Application Task

Asset monitoring
Configuration & parameterization
Documentation & reports
Process monitoring & visualization
Maintenance management
Field of Application

• Configuration and management of smart field devices in a facility
• Easy device configuration, maintenance management, condition-based maintenance and life cycle management
• Can be adapted to different needs depending on the license, and is therefore upgradeable at any time
Operating systems

Windows 10 Professional
Windows 10 Enterprise
Windows Server 2016
Windows Server 2019
Processor type

Intel Core i3/i5/i7 ≥ 1.8 GHz
Main memory

4GB RAM (recommended)
Hard-disk capacity

At least 20 GB should be available for a full installation and an appropriate reserve
Monitor resolution, display

1280 x 768, 64,000 colors
Digital communication

HART, PROFIBUS, FOUNDATION Fieldbus, Modbus, IO-Link, Ethernet/IP, PROFINET and PROFINET APL
Registered Trademarks

Microsoft, Windows, Windows 8.1, Windows Server, Windows 10 and the Microsoft logo are registered trademarks of the Microsoft Corporation.
All other brand and product names are trademarks or registered trademarks of the companies
and organisations in question.
