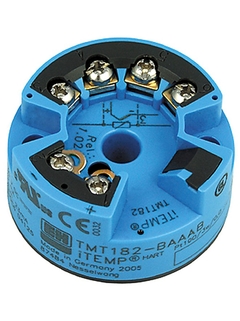

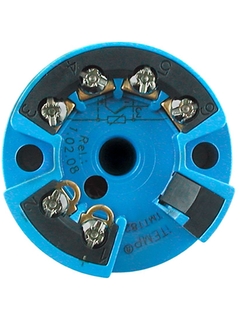

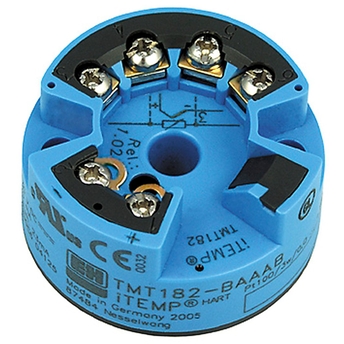

Product picture temperature head transmitter TMT182

iTEMP HART TMT182

TMT182
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-
Filter Measuring / Application task
Filter Measuring / Application task
Measuring / Application task

Configure to download the CAD drawings of this product

Close Show results

  • Measuring principle

    Head transmitter

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    11,5...35 V DC (standard-version)
    11,5...30 V DC (Ex-version)

  • Communication

    HART-protocol

  • Installation

    Terminal head form B

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K
    (Pt100, -58...392 °F) <= 0,4 °F

  • Galvanic isolation

    yes

  • Certification

    UL Ex IS
    UL Ex NI
    GL marine approval
    GOST Ex i
    FM IS,NI,Class I,Div.1+2,Group ABCD
    CSA IS,NI,Class I,Div.1+2,Group ABCD
    ATEX II1G Ex ia IIC T4/T5/T6
    ATEX II3G Ex nA IIC T4/T5/T6
    ATEX II3D
    ATEX II1G Ex ia IIC T6, II3D
    ATEX II3G Ex nA IIC T6, II3D
    FM+CSA IS,NI,Class I,Div.1+2,Group ABCD
    CSA General Purpose
    IECEx Ex ia IIC T6/T5/T4
    ATEX IECEx II1G Ex ia IIC T6 Ga
    EAC Ex ia IIC T6 Ga
    GL (German Lloyd)
