Characteristic / Application

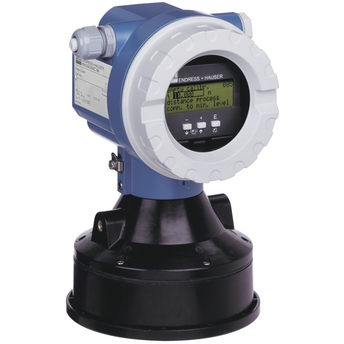

Compact ultrasonic transmitter
-
Supply / Communication
4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
-
Accuracy
+/- 4 mm or +/- 0.2 %of set measuring range
-
Ambient temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)
-
Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)
-
Process pressure / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi)
-
Main wetted parts
Unsaturated Polyester, 316 Ti
-
-
-
-
Max. measurement distance
Max. measurement distance
-
Communication
4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
-
Certificates / Approvals
ATEX, FM, CSA, IEC, INMETRO, NEPSI
-
-
Characteristic / Application
Compact ultrasonic transmitter
-
Supply / Communication
4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
-
Accuracy
+/- 4 mm or +/- 0.2 %of set measuring range 1)
-
Ambient temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)
-
Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)
-
Process pressure / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi)
-
Main wetted parts
unsaturated polyester, 316 Ti
-
-
-
Max. measurement distance
-
Communication
4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
-
Certificates / Approvals
ATEX, FM, CSA, IEC, INMETRO, NEPSI
-
Application limits
Take notice of range diagram
Most downloaded
-
Prosonic M FMU40/41/42/43/44
Technical Information
|
English version - 12/2014
|
Ultrasonic Level Measurement
Compact transmitters for non-contact level measurement of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
19/12/2014
|
|
|
|
|
26/06/2014
|
|
|
|
|
16/01/2013
|
|
|
|
|
04/04/2012
|
|
|
|
|
31/03/2011
|
|
|
|
|
Language:
|
English
|
|
Version:
|
19/12/2014
|
|
File size:
|
3.1 MB
|
|
File name:
|
TI00365FEN_1714.pdf
|
85 documents
-
Prosonic M FMU40/41/42/43/44
Technical Information
Ultrasonic Level Measurement
Compact transmitters for non-contact level measurement of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
19/12/2014
|
|
|
|
|
26/06/2014
|
|
|
|
|
16/01/2013
|
|
|
|
|
04/04/2012
|
|
|
|
|
31/03/2011
|
|
|
|
|
Language:
|
English
|
|
Version:
|
19/12/2014
|
|
File size:
|
3.1 MB
|
|
File name:
|
TI00365FEN_1714.pdf
|
-
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
|
EN
|
|
|
|
06/12/2024
|
|
|
|
|
25/03/2024
|
|
|
|
|
15/09/2023
|
|
|
|
|
28/10/2021
|
|
|
|
|
30/07/2021
|
|
|
|
|
Language:
|
English
|
|
Version:
|
06/12/2024
|
|
File size:
|
1.3 MB
|
|
File name:
|
TI00426FEN_2624.pdf
|
-
Prosonic M FMU40/41/42/43/44
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
02/04/2012
|
|
|
|
|
27/02/2009
|
|
|
|
|
30/05/2008
|
|
|
|
|
03/05/2007
|
|
|
|
|
13/04/2005
|
|
|
|
|
Language:
|
English
|
|
Version:
|
02/04/2012
|
|
File size:
|
3.7 MB
|
|
File name:
|
BA00239FEN_1312.pdf
|
-
Prosonic M FMU40/41/42/43/44
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
02/04/2012
|
|
|
|
|
01/09/2007
|
|
|
|
|
20/07/2006
|
|
|
|
|
14/02/2004
|
|
|
|
|
01/01/2002
|
|
|
|
|
Language:
|
English
|
|
Version:
|
02/04/2012
|
|
File size:
|
1.5 MB
|
|
File name:
|
BA00240FEN_1312.pdf
|
-
Prosonic M FMU40/41/42/43/44
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
04/04/2012
|
|
|
|
|
27/02/2009
|
|
|
|
|
03/05/2007
|
|
|
|
|
07/08/2006
|
|
|
|
|
17/07/2006
|
|
|
|
|
Language:
|
English
|
|
Version:
|
04/04/2012
|
|
File size:
|
3.2 MB
|
|
File name:
|
BA00238FEN_1312.pdf
|
-
Prosonic M FMU40/41/42/43/44
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
02/04/2012
|
|
|
|
|
01/01/2009
|
|
|
|
|
30/04/2007
|
|
|
|
|
07/08/2006
|
|
|
|
|
01/07/2006
|
|
|
|
|
Language:
|
English
|
|
Version:
|
02/04/2012
|
|
File size:
|
2.6 MB
|
|
File name:
|
BA00237FEN_1312.pdf
|
-
FMU4x - Exchange of housing T12
Prosonic M FMU4x - Exchange of housing T12
|
Language:
|
English
|
|
Version:
|
16/04/2021
|
|
File size:
|
266.7 KB
|
|
File name:
|
KA00570F00_A2.pdf
|
-
FMU43 - Exchange of sensor
FMU43 - Exchange of sensor
|
Language:
|
English
|
|
Version:
|
20/04/2021
|
|
File size:
|
286.9 KB
|
|
File name:
|
KA00584F_A2.pdf
|
-
Weather protection cover
Mounting Instruction
Weather protection cover for devices with F12/T12/F23 housing.
|
EN
|
|
|
|
27/06/2007
|
|
|
|
|
31/05/2007
|
|
|
|
|
Language:
|
English
|
|
Version:
|
27/06/2007
|
|
File size:
|
235.5 KB
|
|
File name:
|
KA137Fa6_0607.pdf
|
-
Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2
wire) for
connection of FHX40
Micropilot M, Leveflex M, Prosonic M - Modification of F12 housing (2
wire) for
connection of FHX40
|
Language:
|
English
|
|
Version:
|
20/04/2021
|
|
File size:
|
188.7 KB
|
|
File name:
|
KA00594F_A2.pdf
|
-
Levelflex M, Prosonic M - modification of housing F12 (4 wire) for
Connection of FHX40
Levelflex M, Prosonic M - modification of housing F12 (4 wire) for
Connection of FHX40
|
Language:
|
English
|
|
Version:
|
20/04/2021
|
|
File size:
|
199.8 KB
|
|
File name:
|
KA00595F_A2.pdf
|
-
Screw set for Micropilot II/M, Levelflex M, Prosonic M
Screw set for Micropilot II/M, Levelflex M, Prosonic M
|
Language:
|
English
|
|
Version:
|
15/04/2021
|
|
File size:
|
532.2 KB
|
|
File name:
|
KA00512F00_A2.pdf
|
-
Prosonic M FMU40/41/42/43/44
PROFIBUS-PA
Brief Operating Instructions
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
08/09/2011
|
|
|
|
|
27/02/2009
|
|
|
|
|
Language:
|
English
|
|
Version:
|
08/09/2011
|
|
File size:
|
1.1 MB
|
|
File name:
|
KA01063FEN_1311.pdf
|
-
Micropilot M, Levelflex M, Prosonic M, Micropilot S
|
Language:
|
English
|
|
Version:
|
07/01/2016
|
|
File size:
|
59.3 KB
|
|
File name:
|
KA00549FA2_0602.pdf
|
-
Ultrasonic level measurement
Ultrasonic level measurement
|
EN
|
|
|
|
22/08/2003
|
|
|
|
|
Language:
|
English
|
|
Version:
|
22/08/2003
|
|
File size:
|
72.9 KB
|
|
File name:
|
KA183FA2.PDF
|
-
FMU4x, FMP4x - Exchange of power module for housing F12 (Netzteil)
FMU4x, FMP4x - Exchange of power module for housing F12 (Netzteil)
|
Language:
|
English
|
|
Version:
|
16/04/2021
|
|
File size:
|
132.9 KB
|
|
File name:
|
KA00579F00_A2.pdf
|
-
FMU4x - Exchange of housing F12
Prosonic M FMU4x - Exchange of housing F12
|
Language:
|
English
|
|
Version:
|
16/04/2021
|
|
File size:
|
294.3 KB
|
|
File name:
|
KA00571F00_A2.pdf
|
-
FMU4x - Exchange of electronics for housing F12
Prosonic M FMU4x - Exchange of electronics for housing F12
|
Language:
|
English
|
|
Version:
|
16/04/2021
|
|
File size:
|
275.4 KB
|
|
File name:
|
KA00573F00_A2.pdf
|
-
Prosonic M FMU40/41/42/43/44
4-20 mA HART
Brief Operating Instructions
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
08/09/2011
|
|
|
|
|
08/03/2010
|
|
|
|
|
Language:
|
English
|
|
Version:
|
08/09/2011
|
|
File size:
|
1 MB
|
|
File name:
|
KA01062FEN_1311.pdf
|
-
Prosonic M FMU40/41/42/43/44
FOUNDATION Fieldbus
Brief Operating Instructions
Compact transmitters for non-contact level measurements of fluids,
pastes and coarse bulk materials
|
EN
|
|
|
|
08/09/2011
|
|
|
|
|
08/03/2010
|
|
|
|
|
Language:
|
English
|
|
Version:
|
08/09/2011
|
|
File size:
|
1.1 MB
|
|
File name:
|
KA01064FEN_1311.pdf
|
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
-
Set of screws housing F12/T12/F23
Drawing number
Order code
12
535720-9020
-
Drawing number
Order code
65
52010526
-
Cover F12/T12 Alu, coated, gasket
Drawing number
Order code
20
517391-0011
-
Cover F12/T12 Alu, window, gasket
Drawing number
Order code
20
52005936
-
Cover terminal compartment F12/F23
Drawing number
Order code
11
52006026
-
Cover terminal compartment F12/F23,FHX40
Drawing number
Order code
11
52019062
-
O-ring 113.9x3.63 EPDM, 5 pieces
-
Terminal module 4-pole, PA, FF
Drawing number
Order code
35
52012156
-
Power supply 10.5-32VDC (housing F12)
Drawing number
Order code
35
52013304
-
Power supply 90-250VAC (F12), Ex only
Drawing number
Order code
35
52013305
-
Power supply CSA, 10.5-32VDC (housg F12)
Drawing number
Order code
35
52015585
-
Power supply CSA, 90-250VAC (housg F12)
Drawing number
Order code
35
52015586
-
Power supply 90-250VAC (F12) v2, Non-Ex
Drawing number
Order code
35
71396869
-
Electronics FMU4x, Ex, 4-wire, HART,v4.0
Drawing number
Order code
30
71025602
-
Electronics FMU4x, Ex, PA, v4.0_2
Drawing number
Order code
30
71344233
-
Electronics FMU4x, Ex, FF, v4.02.2
Drawing number
Order code
30
71462298
-
Drawing number
Order code
40
52026443
-
Drawing number
Order code
40
71386715
-
Drawing number
Order code
50
52013543
-
-
-
-
-
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
-
-
Protective cover for housing T12/F12, SS
-
-
Mounting bracket FHX40 1" / 2" pipe
