©Endress+Hauser

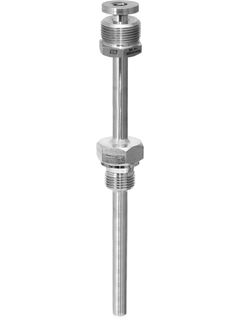

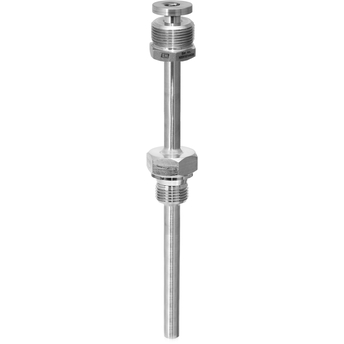

Threaded version
©Endress+Hauser

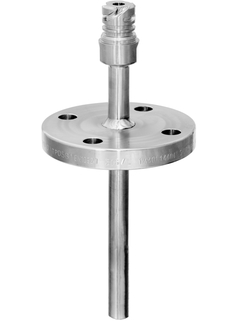

Flanged version
©Endress+Hauser

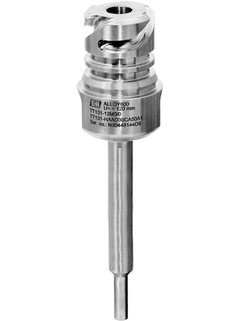

Version with iTHERM QuickNeck
Specs at a glance
Max. process pressure (static)
Depending on configuration up to 100 bar
Maximum standard immersion length
Max. immersion length on request
Field of application
This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.
Protects the temperature sensor against physical and chemical stress
High robustness for challenging process conditions
Pressure range: up to 100 bar (1450 psi)
For use in pipes, containers or tanks
Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point
Benefits
Modular configuration according to DIN 43772
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration of the insert
Extension, immersion length and total length can be chosen according to process requirements
Wide choice of dimensions, materials and process connections available
Specially designed tip for fast response times
Extended selection
High-end products
Highly functional and convenient
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Characteristic / Application
metric style
Head connection
external thread:
Maximum standard immersion length
Max. immersion length on request
Process connection
Thread:
Thermowell root diameter
9x1,25 mm
Medium contact material
316 (1.4401)
Wetted part finishing (Ra)
Tip shape
straight
Temperature range
-200...1.100 °C (-328...2.012 °F)
Max. process pressure (static)
Depending on configuration up to 100 bar
Max. process pressure at 400 °C
Depending on configuration
