Tank gauging instrument

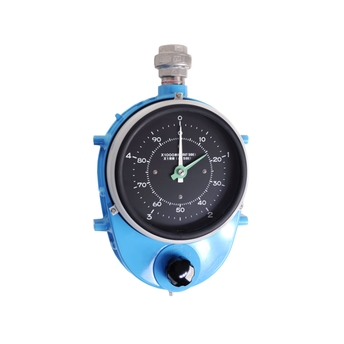

Float Gauge LT5
Mechanical tank gauge for accurate and reliable level measurement
Float Gauge LT5 has been developed for all areas of industry. Many years of operation in a wide variety of applications have proven its reliability.
-
Преимущества
-
No electrical power is required to perform the measurement
-
Built-in repeatability check
-
Direct reading at the tank side allows you to check the level indication easily
-
Can be installed on a variety of tanks including fixed roof, floating roof, covered...
-
-
Область применения
Level indication of petroleum products such as crude oil, kerosene, light and heavy oil, vegetable oil, palm oil, seed oil and animal oil, highly viscous liquid such as asphalt, certain chemicals (corrosive/toxic vapor can be sealed using a liquid seal...
Документы / руководства пользователя / программное обеспечение
-
Float Gauge LT5-Technical Information
The Float Tank Gauge LT5-1 perform an important role in all areas of industry. Many years of operation in wide variety of applications have proven their reliability. No electrical power is required to perform the measurement. In addition, LT series can be installed easily in your site and can measure the liquid level accurately, and can be used for the detector of the remote command. Therefore LT series are best suited for use in the following operations. • Management of Inventory • Batch Process • Management of Process Tank • Safety Drive of Tanks
Техническая Информация (TI) -
Float Level Gauge LT5 - Operating Instruction
The Float Tank Gauge LT5-1 perform an important role in all areas of industry. Many years of operation in wide variety of applications have proven their reliability. No electrical power is required to perform the measurement. In addition, LT series can be installed easily in your site and can measure the liquid level accurately, and can be used for the detector of the remote command. Therefore LT series are best suited for use in the following operations. • Management of Inventory • Batch Process • Management of Process Tank • Safety Drive of Tanks
Руководство по эксплуатации (BA) -

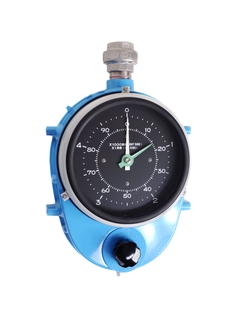

Picture - Float Gauge LT5
Tank Gauge
Изображение03/14Language neutral
Аксессуары / Запчасти
-
-
Nr 21 Order code 56004464
Уплотн U-рез., перед.панель сталь/стекло
Применение: LT14/LT16, LT34/LT36.
-
-
-
Nr 20 Order code 71269676
-
Nr 20 Order code 56004288
Набор заглушек, для задней панели
D95x t1.5мм, болт M10x16, уплотн. шайба. Материал: SUS304. Применение: LT серия.
-
-
-
Nr 42 Order code 017860-0220
Dial plate, 2.5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0221
Dial plate, 5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0222
Dial plate, 10m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0223
Dial plate, 16m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0224
Dial plate, 20m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0101
M & MM pointer assy., Level, Plastic
For level indicator. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 80 Order code 56004502
Направляющая ленты, алюминий
С болтом и шайбой. Применение: LT5,LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.
-
Nr 80 Order code 56004502
Направляющая ленты, алюминий
С болтом и шайбой. Применение: LT5,LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.
-
-
-
Nr 81 Order code 52015582
Пружина измерительной ленты, 5м
Применение: LT1, LT5, LT12/LT14/LT16.
-
Nr 81 Order code 017860-5033
-
Nr 81 Order code 017860-5035
Conster spring, 20m (range 16m, 20m)
Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 81 Order code 017860-5036
-
-
-
Nr 82 Order code 52016945
Подшипник для катушки измер.ленты
Применение: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 84 Order code 017860-0107
Conster drum small, metal, 20m
Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 84 Order code 017860-0108
Conster drum small, metal, 30m
Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 84 Order code 017860-0401
-
Nr 84 Order code 017860-0401
-
-
-
Nr 85 Order code 017860-0001
Gear, d=97mm
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5401
Indication gear assembly, 2.5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212.
-
Nr 85 Order code 017860-5402
Indication gear assembly, 5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212.
-
Nr 85 Order code 017860-5403
Indication gear assembly, 10m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5404
Indication gear assembly, 16m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5405
Indication gear assembly, 20m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 42 Order code 017860-5407
Counter unit (m/mm)
For 30m range. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1222.
-
-
-
Nr 80 Order code 017860-0213
Dust protector
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 80 Order code 017860-0213
Dust protector
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 11 Order code 70106017
Уплотнение, задняя крышка V6502, НД
Применение: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 21 Order code 017860-0119
Seal, front cover plastic LT5LP,11/12
Usage: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/1212/LT1222.
-
-
-
Nr 80 Order code 017860-0056
-
-
-
Nr 20 Order code 71269616
Front cover, steel/glass, LT5 LP
Steel front cover with glass window. Seal U shape, 3 bolts. Usage: LT5.
-
Nr 20 Order code 017860-5450
Front cover, plastic
Transparency plastic cover. Verwendung: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 80 Order code 70106005
Gauge head nipple, SUS316, LT5 LP/LT11
Usage: LT5 thread connection, LT11.
-
-
-
Nr 96 Order code 71269687
-
-
-
Nr 80 Order code 56004503
Направл.ленты, SUS пружинная, стандарт
С болтом, шайбой. Применение: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 83 Order code 017860-0113
-
Nr 83 Order code 017860-0111
-
-
-
Nr 84 Order code 017860-0106
Conster drum large, plastic,LT5LP, 11/12
Drum, Bakelite, with bolt, M6-16. Screw, M4x12, Nut, M4. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 84 Order code 017860-0109
-
Nr 84 Order code 017860-5123
-
Nr 84 Order code 017860-5124
-
-
-
Nr 80 Order code 017860-5440
Union joint, Rc1-1/2 SUS316
Usage: LT5 thread connection, LT11.
-
-
-
Nr 83 Order code 017860-0318
-
Nr 83 Order code 017860-0319
O-ring, PTFE, small
Size: G4-10005. Material: PTFE. Part: magnet coupling. Usage: LT5, LT14/LT16, LT34/LT36.
-
Nr 83 Order code 017860-0320
O-ring, PTFE, large
Size: G4-10006. Material: PTFE. Part: magnet coupling. Usage: LT5, LT14/LT16, LT34/LT36.
-
Nr 83 Order code 017860-0326
-
Nr 83 Order code 017871-1227
-
-
-
Nr 20 Order code 71269625
Передняя крышка, сталь/стекло, LT5 MP/HP
Примение: LT5-4, LT5-6. Стальная передняя крышка со стеклянным окошком, U-образное резиновое уплотнение, 3 болта.
-
-
-
Nr 83 Order code 71134086
Внутр.детали контр.рукоятки, СД/ВД
Метал.уплотнение, пружина, упл.кольцо, пластина, буртик. Применение: LT5-4/LT5-6/LT14/LT16.
-
-
-
Nr 80 Order code 017871-1232
Coupling, male,for gauge head, MP/HP
Gauge head side,male pin type,Alu plate without female coupling for transmitter with washer M4 SUS304,nut M4 SUS304. Usage: LT5, LT14/LT16, LT34/LT36.
-
-
-
Nr 82 Order code 017860-0316
-
-
-
Nr 84 Order code 70106490
Шестеренка+магнит, метрич, ВД, NBR (LPG)
Применение: LT5, LT16, LT34/LT36.
-
Nr 84 Order code 70106491
Шестеренка+ магнит, метрич, ВД, CR (NH3)
Применение: LT5, LT16, LT34/LT36.
-
Nr 84 Order code 70106492
Шестеренка+магнит, метрич, СД, NBR (LPG)
Применение: LT5, LT14, LT34.
-
Nr 84 Order code 70106493
Шестеренка + магнит,metric, СД, CR (NH3)
Применение: LT5, LT14, LT34.
-
Nr 84 Order code 70106495
Катушка ленты, с лебедкой, СД/ВД
Применение: LT5, LT14/LT16.
-
Nr 84 Order code 70106622
-
-
-
Nr 95 Order code 017860-0004
-
-
-
Nr 11 Order code 70103511
Уплотнение, задняя крышка, СД V6502
Применение: LT5, LT14, LT34.
-
-
-
Nr 96 Order code 71269672
-
-
-
Nr 83 Order code 56004299
-
-
-
Nr 84 Order code 56004407
-
-
-
Nr 11 Order code 70103512
Уплотнение, задняя крышка, ВД V6502
Применение: LT5, LT16, LT36.
-
-
-
Nr 96 Order code 71269722
-
-
-
Nr 83 Order code 017860-0322
-
-
-
Nr 84 Order code 017860-0311
-
-
-
Nr 86 Order code 56004412
Измерительная лента, CRT 5м (общ. L 13м)
L=13м, погруж.часть=7м, конец ленты= без зажима. С зажимом, M3 болт, M3 гайка. Применение: LT5, LT1112/LT1122/LT1212/ LT1212/LT1222.
-
Nr 86 Order code 017860-0005
Measuring tape FRT 5m (L 7m) + wire 9m
L=7m,hole part=7m,with wire=1.6mm,9m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0006
Meas. tape FRT 5m(L7m)+PFA coat wire 11m
L=7m,hole=7m,with wire=1.6mm,9m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0007
Meas. tape FRT 10m(total L 12m)+wire 14m
L=12m,hole part=12m,with wire,1.6mm,14m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0008
Meas. tape FRT 10m(L12m)+PFAcoatwire 16m
L=12m,hole=12m,with wire,1.6mm,14m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0011
Meas. tape FRT 20m (L 22m)+ wire 24m
L=22m,hole part=22m,with wire,1.6mm,24m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0012
Meas. tape FRT 20m(L22m)+PFAcoatwire 26m
L=22m,hole=22m,with wire,1.6mm,24m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0013
Meas. tape FRT 30m(total L 32m)+wire 34m
L=32m,hole part=32m,with wire,1.6mm,34m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0014
Meas. tape FRT 30m,1.6mm 316 PTFE coated
L=32m,hole=32m,with wire,1.6mm,34m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5210
Measuring tape, BT 30m (total L 75m)
L=75m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5302
Measuring tape, CRT 10m/BT 5m (L 24m)
L=24m, hole part=12m, tape end=no clasp. With clasp, M3 screw,M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5304
Measuring tape, CRT 20m/BT 16m (L 45m)
L=45m, hole part=22m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5305
Measuring tape, CRT 30m/BT 20m (L 65m)
L=65m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Verwendung: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5306
Measuring tape, FRT 5m (L 7m), tape only
L=7m, hole part=7m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5307
Measuring tape, FRT 10m(L12m), tape only
L=12m, hole part=12m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5309
Measuring tape, FRT 20m(L 22m),tape only
L=22m, hole part=22m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0210
Universal joint
Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 86 Order code 017860-0211
Triangle joint
Verwendung: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
-
-
Nr 88 Order code 017860-7003
Float LF400, SUS316, 5kg, LP
Low pressure, 5Kg. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 88 Order code 017860-7010
Float LF400, SUS316, 8kg, LP
Low pressure, 8Kg. Usage: LT5, LT11/LT12.
-
Nr 88 Order code 017860-7001
Float HF400, SUS316, 8.3kg, MP/HP
High pressure, 8.3kg. Usage: LT5, LT11/LT12/LT14/LT16.
-
-
-
Nr 101 Order code 70106015
-
Nr 101 Order code 017860-0709
O-ring, bearing, P8, silicon rubber, LP
Size: D8mm, d1.9mm. Material: silicon. Usage: Roller, elbow, balancer, LT5, LT11/LT12, LT31/LT32.
-
-
-
Nr 102 Order code 017860-1259
SUS316 bearing, with o-ring 2 piece, LP
Bering stainless steel 316, guide elbow d4mm, o-ring silicon, rubber P8. 1 set (2 pieces). Usage: LT5, LT11/LT12, LT31/LT32.
-
-
-
Nr 104 Order code 017860-0018
-
Nr 104 Order code 017860-0482
90' Sh.elbow Rp 1-1/2" SCS14, LP
Usage: LT5, LT11 LP thread connection.
-
Nr 104 Order code 017860-5445
90' Sheave elbow Rp 1-1/2 aluminum, LP
Verwendung: LT5, LT11/LT12LT14/LT16, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 101 Order code 70106014
-
-
-
Nr 103 Order code 017860-0704
SUS316L elbow roller, LP/MP
Usage: LT5, LT11/LT12, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 101 Order code 70103509
Колено ВД/балансир СД упаковка, V6502
Применение: LT5, LT16, LT34/LT36.
-
Nr 101 Order code 017860-0707
O-ring, bearing, PTFE, P10, HP
Size: D10mm, d1.9mm. Material: PTFE. Parts: roller bearing, angle, HP. Usage: LT5, LT14/LT16.
-
-
-
Nr 102 Order code 017860-0706
SS316 bearing, for elbow, Mid, Hi pres.
With O-ring PTFE JIS B2401 P10. Usage: LT5, LT14/LT16, LT34/LT36.
-
-
-
Nr 103 Order code 017860-0705
-
-
-
Nr 104 Order code 017860-0020
90’ Sh.elb ASME 1-1/2" Cl.300 RF iron HP
Usage: LT5, LT16, LT36.
-
Nr 104 Order code 017860-0022
135'Sh.elb ASME 1-1/2"Cl.300 RF iron HP
Usage: LT5, LT16, LT36.
-
-
-
Nr 91 Order code 70106494
Шайба, T-анкер, 10K/20K/150lbs, SUS316
Применение: LT5, LT14/LT16.
-
Nr 91 Order code 017860-5333
Washer, T-anchor, Cl.300, SUS316
D91mm, for ASME/JPI Cl.300 type. Usage: LT5, LT16.
-
Nr 91 Order code 70106003
Seal, top anchor, JIS 10K, V6502
Low/middle pressure. Flange connection. Usage: LT5, LT14/LT16.
-
Nr 91 Order code 70106012
Seal, top anchor, ASME Cl.300, V6502
High pressure. Usage: LT5.
-
-
-
Nr 93 Order code 017860-0808
-
-
-
Nr 94 Order code 017860-0058
Top-anchor, SUS316, socket weld-fix, LP
Complete set, welded socket. Material: SUS316. Usage: LT5 LP thread connection, LT11.
-
-
-
Nr 91 Order code 71269669
Упл. Т-анкера (алюм.корпус),резьба,V6502
Уплотнение: D 51 x d42, T=1.0. Применение: LT низ давл. Верхний анкер.
-
Nr 91 Order code 70106010
Seal, top anchor, thread, V6502
Low pressure. Thread connection. Usage: LT5, LT11/LT12.
-
-
-
Nr 92 Order code 017860-0030
Housing Cap, Aluminum, 1" threaded
Top anchor, cover, ADC. Usage: LT5, LT11.
-
-
-
Nr 94 Order code 017860-0025
T-anchor ASME 1-1/2" Cl.150 RF alumi, LP
Complete set, Threaded flange, case ADC. Internal part, SUS316. Usage: LT5 LP flange connection, LT12.
-
Nr 94 Order code 017860-0026
T-anchor ASME 1-1/2" Cl.150 RF SUS316,LP
Complete set, welded flange, all 316. Usage: LT5 LP flange connection, LT12.
-
Nr 94 Order code 017860-0027
T-anchor ASME 1-1/2" Cl.300 RF iron HP
T-anchor complete set. Internal part, SUS316. Usage: LT5, LT16.
-
Nr 94 Order code 017860-0820
Top anchor SUS316 threaded, PT1"
Complete set, theaded socket, all 316. Usage: LT5 LP thread connection, LT11.
-
Nr 94 Order code 017860-5471
Top-anchor R1 aluminum (ADC6), LP
Complete set, threaded socket, Case ADC. Internal part, SUS316. Usage: LT5, LT11 LP thread connection.
-
-
-
Nr 111 Order code 017860-0663
Teflon part assembly
Seal for shaft,PTFE. Seal, compression nut,V6502. Tape tighten metal. Spring pin,x2. Usage: LT5, LT14/LT16.
-
-
-
Nr 112 Order code 017860-5117
-
-
-
Nr 113 Order code 017860-0033
Valve SCS13 ASME 1-1/2" Cl.150 RF
ASME 1-1/2" Cl.150 RF. Material: SCS13. Usage: LT5 MP/HP, LT14/LT16.
-
Nr 113 Order code 017860-0034
Valve SCS13 ASME 1-1/2" Cl.300 RF
ASME 1-1/2" Cl. 300 RF. Material: SCS13. Usage: LT5 MP/HP, LT14/LT16.
-
-
-
Nr 86 Order code 017860-5310
Measuring tape, FRT 30m(L 32m),tape only
L=32m, hole part=32m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5501
Measuring wire, 316, 5m
1.6mm,strand, 9m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5502
Measuring wire, 316, 10m
1.6mm,strand,14m,with wire,0.5mm,316,1m.
-
Nr 86 Order code 017860-5503
Measuring wire, 316, 16m
1.6mm,strand,20m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5504
Measuring wire, 316, 20m
1.6mm,strand,24m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5505
Measuring wire, 316, 30m
1.6mm,strand,34m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5506
Measuring wire, PFA coated, 5m
2.6mm, 316, strand, PFA, coated, 9m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5507
Measuring wire, PFA coated, 10m
2.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5508
Measuring wire, PFA coated, 16m
2.6mm, 316, strand, PFA, coated, 20m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5509
Measuring wire, PFA coated, 20m
2.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5510
Measuring wire, PFA coated, 30m
2.6mm, 316, strand, PFA, coated, 34m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5430
Tape clamp
Plate, 13x60x0.2t, 316, M3-8 screw, nut. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.
-
Nr 86 Order code 017860-5432
Wire connector, triangle
Connector tape/wire. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1212/LT1222.
-
-
-
Nr 105 Order code 71134091
Подшипник x2, > буф.емкость, угл.ролик
Материал: ПВХ. Уплотнительное кольцо PTFE . Применение: LT5-1/LT11/LT12.
-
-
-
Nr 106 Order code 71134090
Буф.емкость, угловой ролик, PVC
Применение: LT5-1/LT11/LT12.
-
-
-
Nr 107 Order code 017860-0720
-
Nr 107 Order code 017860-5452
-
-
-
Nr 108 Order code 52017100
Буф.емкость PVC/PVC, JIS 10K 40A FF
Материал: сторона резервуара PVC, сторона датчика ПВХ, с парафиновым маслом 2 литра Материал колена: ПВХ. Соединение: фланец JIS 10K 40A FF.
-
Nr 108 Order code 52017103
Буф.емкость SGP/AC4A, Rp 1-1/2"
Материал: сторона резервуара и сторона датчика - сталь. Материал колена: AC4A. Соединение: резьба, PS 1-1/2".
-
Nr 108 Order code 52017104
Буф.емкость SGP/AC4A, JIS 10K 40A RF
Материал: сторона резервуара & сторона датчика - сталь. С парафиновым маслом, 2 литра. Материал колена: литой алюминий, 4A. Соединение: фланец JIS 10K 40A RF.
-
Nr 108 Order code 52017110
Буф.емкость 316/316, Rp 1-1/2"
Материал: сторона резурвуара 316, сторона датчика 316. С парафиновым маслом, 2 литра. Материал колена: 316. Подключение: резьба, PS 1-1/2".
-
Nr 108 Order code 52017111
Буф.емкость 316/316, JIS 10K 40A RF
Материал: со стороны резервуара 316, со стороны датчика 316. С парафиновым маслом, 2 литра. Материал колена: 316. Соединение: фланец JIS 10K 40A RF.
-
-
-
Nr 101 Order code 56004354
Крышка колена алюм., упавковка, разъем
Крышка, алюминий, со сливной пробкой, упаковка, пробковая. Применение: LT5.
-
-
-
Nr 87 Order code 71134089
Направл.кабель,многожил, SUS316, 12м x 2
3мм, SUS316, многожильный, набор 12м x 2. Провод, 0.5мм, 1м. Применение: LT5-1/LT11/LT12.
-
Nr 87 Order code 017860-0047
Guide wire, strand, PFA coated, 24m
4.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0048
Guide wire, strand, PFA coated, 36m
4.6mm, 316, strand, PFA, coated, 36m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0049
Guide wire, strand, PFA coated, 44m
4.6mm, 316, strand, PFA, coated, 44m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0050
Guide wire, strand, PFA coated, 64m
4.6mm, 316, strand, PFA, coated, 64m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-5464
Guide wire, strand, PFA coated, 14m
4.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5516
Guide wire, strand, SUS316, 14m
3mm,316,strand,14m,with,wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5517
Guide wire, strand, SUS316, 24m
3mm,316,strand,24m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5518
Guide wire, strand, SUS316, 36m
3mm,316,strand,36m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5519
Guide wire, strand, SUS316, 44m
3mm,316,strand,44m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5520
Guide wire, strand, SUS316, 64m
3mm,316,strand,64m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5521
Guide wire, solid, SUS316, 7m x 2
D=3mm, 316, Solid, L=14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5522
Guide wire, solid, SUS316, 12m x 2
D=3mm, 316, Solid, L=24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5523
Guide wire, solid, SUS316, 18m x 2
D=3mm, 316, Solid, L=36m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5524
Guide wire, solid, SUS316, 22m x 2
D=3mm, 316, Solid,L=44m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5525
Guide wire, solid, SUS316, 32m x 2
D=3mm, 316, Solid, L=64m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 52016949
Анкерный крюк SS400, болт, гайка ПВХ
2x анкер L-типа SS400, болт, гайка ПВХ. Применение: LT5-1, LT11/LT12.
-
Nr 87 Order code 52016951
Анкерный крюк SUS316, болт, гайка ПВХ
2x анкер L-типа SUS316, болт, гайка ПВХ. Применение: LT5-1, LT11/LT12.
-
Nr 87 Order code 017860-5441
Anchor hook SS400, bolt, nut SUS316
2x L-type anchor SS400, bolt M10-25 nut, spring washer, washer SUS316. Usage: LT5 LP/LT11/LT12.
-
Nr 87 Order code 017860-5442
Anchor hook SUS316, bolt, nut SUS316
2x L-type anchor SUS316, bolt M10-25, nut, spring washer, washer SUS316. Usage: LT5, LT11/LT12/LT14/LT16.
-
-
-
Nr 80 Order code 017860-0721
Wire guide socket, FRT instal. Rc 1-1/2
Installed at top pipe end. Usage: LT5, LT11/LT12.
-
Nr 80 Order code 017860-5420
Gauge bracket, steel
Mounting, W32xH300xD90x4.5t. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.
-
-
Ранняя версия
