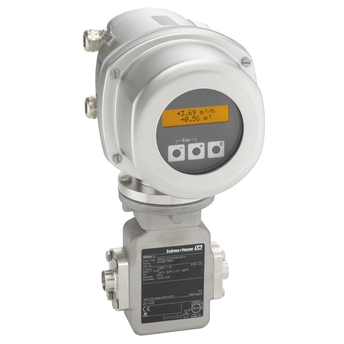

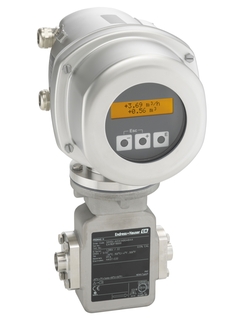

Name: Promag 50H
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Electromagnetic flowmeter - Proline Promag 50H

Predecessor

Successor

F

L

E

X

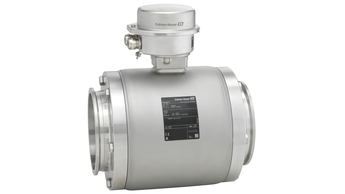

Proline Promag H 100 / 5H1B

The specialist for hygienic applications with an ultra-compact transmitter
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information
F

L

E

X

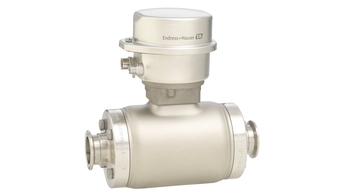

Proline Promag H 300 / 5H3B

Specialist for hygienic applications with a compact, easily accessible transmitter
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information
F

L

E

X
Proline Promag H 500 / 5H5B

Specialist for hygienic applications, as remote version with up to 4 I/Os
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Electromagnetic
Product headline

The flowmeter for smallest flow rates with a modular electronic concept. For demanding hygienic applications.
Sensor features

Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. ner made of PFA . Sensor housing made of stainless steel (3-A, EHEDG).
Transmitter features

Fast commissioning – application‐specific Quick Setups. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.
Nominal diameter range

DN 2...150
1/12"...6"
Wetted materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Measured variables

Volume flow
Max. measurement error

±0.5%
±0.2% (optional)
Measuring range

0...600 m3/h
Max. process pressure

PN16 to 40
Medium temperature range

-20...+150°C
(-4...+302°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
PROFIBUS PA
Hazardous area approvals

ATEX, FM, CSA
Product safety

CE, C-tick, EAC marking
Hygienic approvals and certificates

3-A, EHEDG

Filter

5 documents

Installation Instructions (EA)

Replacing amplifier board Installation Instructions

Installation Instructions (EA)

English version - 11/2018

New version available in English

Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 90, 93, t-mass 65

Select other languages, versions and see details Hide selection and details

	EN
15/11/2018

Language:	English
Version:	15/11/2018
File size:	393.9 KB
File name:	EA00064DA2_1518.pdf

Share
- Copy Link
- Send Mail
Download

Installation Instructions (EA)

Replacing amplifier board for harsh environment (HE) Installation Instructions

Installation Instructions (EA)

English version - 11/2018

New version available in English

Promag 50, 53, 55, Promass 80, 83, 84, Cubemass DCI 8CN, CNGmass DCI 8DF

Select other languages, versions and see details Hide selection and details

	EN
15/11/2018

Language:	English
Version:	15/11/2018
File size:	379.4 KB
File name:	EA00067DA2_1518.pdf

Share
- Copy Link
- Send Mail
Download

Manufacturer Information (MI)

PRM HART Package V1.05.00 Herstellerinformation beinhaltet PRM - Geräteliste, Freigabehinweise – HART

Manufacturer Information (MI)

German version - 04/2014

New version available in English

Herstellerinformation für Anwender betreffend Softwareänderungen (in
Anlehnung an NAMUR-Empfehlung 53)
Neue Software Version: 1.05.00

Show details Hide details

Language:	German
Version:	08/04/2014
File size:	403.8 KB
File name:	MI00099S_04_de_06.14.pdf

Share
- Copy Link
- Send Mail
Download

Manufacturer Information (MI)

Proline Promag 50 Manufacturer information regarding software updates (NE 50)

Manufacturer Information (MI)

English version - 10/2010

New version available in English

New software version:
Promag 50 PROFIBUS DP: 3.06.00

Show details Hide details

Language:	English
Version:	01/10/2010
File size:	143.6 KB
File name:	MI00046D_06_en_10.10.pdf

Share
- Copy Link
- Send Mail
Download

Manufacturer Information (MI)

Proline Promag 50 Manufacturer information regarding software updates (NE 50)

Manufacturer Information (MI)

English version - 08/2007

New version available in English

New software version:
Promag 50 PROFIBUS PA: 3.04.00

Show details Hide details

Language:	English
Version:	01/08/2007
File size:	143.1 KB
File name:	MI00021D_06_en_08.07.pdf

Share
- Copy Link
- Send Mail
Download

Search spare parts by number in drawing

60 spare parts & accessories
