Promag 55H

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

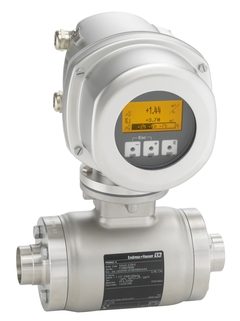

Electromagnetic flowmeter - Proline Promag 55H
