Micropilot FMR57

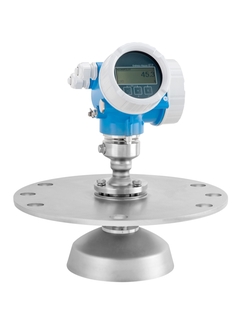

Micropilot FMR57 aluminum housing with parabol antenna and universal flange ©Endress+Hauser
Micropilot FMR57 aluminum housing with horn antenna ©Endress+Hauser

Time-of-Flight measuring principle

Commissioning movie for Micropilot FMR5x free space radar and Levelflex FMP5x guided radar

Unique HistoROM data management concept for safe level measurement

Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

Micropilot with Advanced Dynamics offering more reliable measuring signals even in the case of turbulences

Micropilot FMR57 with Advanced Diagnostic functions offers build-up detection

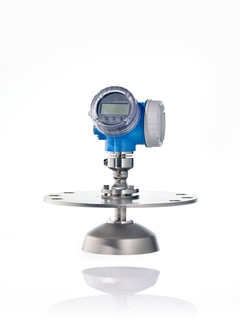

Micropilot FMR57 aluminum housing with parabol antenna ©Endress+Hauser
  • Micropilot FMR57 aluminum housing with parabol antenna and universal flange
  • Micropilot FMR57 aluminum housing with horn antenna
  • Micropilot FMR57 aluminum housing with parabol antenna

The standard sensor for highest demands in bulk solids level measurement

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

Extended selection
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      +/- 3 mm (0.12 in)

    • Process temperature

      -40...+400 °C
      (-40...+752 °F)

    • Process pressure absolute / max. overpressure limit

      Vacuum...16 bar
      (Vacuum...232 psi)

    • Max. measurement distance

      70 m (230 ft)

    • Main wetted parts

      316L, PEEK, PTFE, Polyamid

Loading alternative products

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FMR57
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

    • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

    • Highest reliability even in the presence of obstructions in the...

  • Field of application

    Horn or parabolic antenna. Thanks to the additional air purge connection even strongly dusting and build-up forming media do not present any problem.

    • Process connections: Thread or flange

    • Temperature: -40 to +400°C (–40 to 752°F)

    • Pressure: -1 to +16bar...

Features and specifications

Back

Details

  • Measuring principle

    Level radar solid

  • Characteristic / Application

    For highest demands in measuring tasks of bulk solids:
    Reliable, non-contact level measurement in high silos, bunkers or stockpiles also under extreme conditions like strongly dusting and build-up forming media

  • Specialities

    Heartbeat Technology,

    Bluetooth® commissioning,

    Operation and maintenance SmartBlue App,

    Safety and reliability with Multi- Echo Tracking,

    HistoROM,

    RFID TAG for easy identification

  • Supply / Communication

    2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

    4-wire (HART),

    Bluetooth® wireless technology and App (optional)

  • Frequency

    K-band (~26 GHz)

  • Antenna

    Parabolic DN200/8", DN250/10"

    Horn DN80/3", DN100/4"

  • Accuracy

    +/- 3 mm (0.12 in)

  • Ambient temperature

    -40...+80 °C

    (-40...+176 °F)

  • Process temperature

    -40...+400 °C

    (-40...+752 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...16 bar

    (Vacuum...232 psi)

  • Main wetted parts

    316L, PEEK, PTFE, Polyamid

  • Process connection

    Thread:

    MNPT 1 1/2, R 1 1/2

    Flange:

    DN80...DN100,

    ASME 3"...4",

    JIS 10K,

    UNI DN100/8"...DN250/10"

  • Max. measurement distance

    70 m (230 ft)

  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, KC

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Options

    Display,

    Customized parameterization,

    Remote operation via SmartBlue App using Bluetooth®,

    Antenna extension,

    PWIS free

  • Application limits

    Dk < 1.6

    Reduction of the max. possible measuring range through:

    Media with poor reflection properties

    Angle of repose

    Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling

    Build-up, above all of moist products
