Bundle for pH measurement in Mining, Minerals and Metals industry for optimized flotation processes

pH measuring point in flotation processes

Reliable pH measurement for optimal beneficiation processes in Mining, Minerals and Metals industry

71539355
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-
Price after configuration in cart

Benefits at a glance

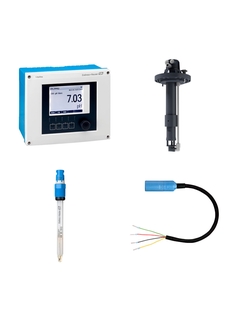

  • Monitor your pH value in flotation processes with the Memosens CPS91E pH sensor. Benefit from Memosens 2.0 technology and maximum process integrity through non-contact, inductive signal transmission. The bundle includes the single channel transmitter Liquiline CM442 and the robust and reliable Dipfit CPA111 immersion assembly. Benefit from a whole measuring point out of one hand to caputre your pH reliably and ensure an efficent process.

  • Benefits at a glance

    • Fast response time for precise process control

    • Minimized risk of blocking in contaminated solutions thanks to the open junction of Memosens CPS91E

    • Built-in ion trap ensures longer lifetime

    • Advanced diagnostic options thanks to Heartbeat Technology and intuitive operation

    • Modular immersion assembly which can be upgraded with a cleaning nozzle to automate cleaning in the process

Bundle in Detail

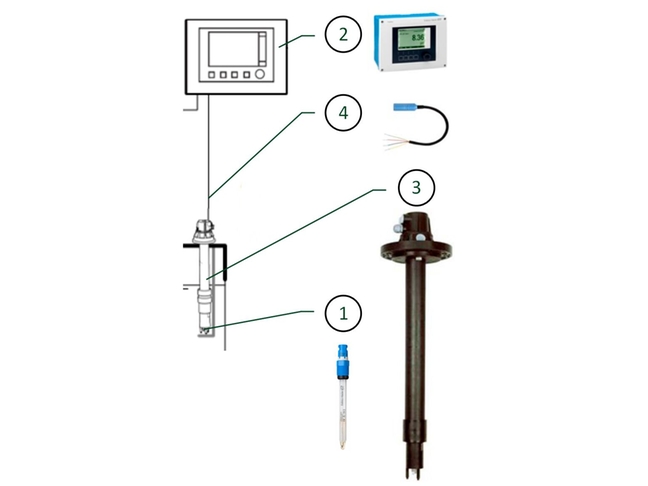

Bundle for pH measurement in flotation and separation processes

Components and Pre-Configurations

  • Fixations

    To ensure the compatibility of the components with one another it has given certain fixations. Open parameters give you the freedom for individual configuration.

    Components can be configured within the bundle in the cart
  • Components
    1

    Memosens CPS91E

    Fixations:
    CPS91E- _ 7BTH2
    Electrode Type:
    7
    Basic version, zero point pH 7,0, temperature sensor NTC 30k
    Application Range:
    B
    0-14 pH, 0...110oC, 0,8...14 bar (abs)
    Reference System:
    TH
    Open junction, ion trap, 3 M KCl, Ag/AgCl
    Shaft Length:
    2
    120mm
  • Liquiline CM442 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more.
    2

    1-/2-channel transmitter
    Liquiline CM442

    Fixations:
    CM442- _ _ _ _ _ _ _
  • Dipfit CPA111 - Immersion assembly for up to three sensors
    3

    Immersion assembly
    Dipfit CPA111

    Fixations:
    CPA111-00 _
    Immersion Depth:
    0
    1000mm
    Assembly Material; Seal; PAL:
    0
    PP, O-ring EPDM
  • CYK10 measuring cable is used with all sensors with Memosens plug-in head.
    4

    Digital measuring cable
    CYK10

    Fixations:
    CYK10- _ _ _
