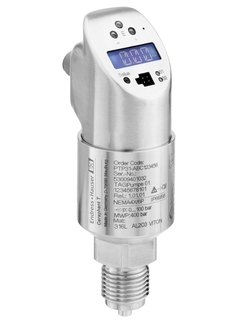

Ceraphant T PTP31

Ceraphant PTP31 - Absolute and gauge pressure ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Pressure switch

  • Characteristic

    Intelligent pressure switch with piezoresistive sensor, longterm stable and overload resistant

  • Supply voltage

    12...30VDC

  • Reference Accuracy

    0,5%

  • Long term stability

    0,15% of URL/year

  • Process temperature

    -40°C...100°C
    (-40°F...212°F)

  • Ambient temperature

    -40°C...85°C
    (-40°F...185°F)

  • Measuring cell

    1bar...400bar
    (15psi...6000psi)

  • Max. overpressure limit

    600bar (9000psi)

  • Process connection

    Threads

  • Communication

    1x PNP switch
    2x PNP switch
    1x PNP switch + 4...20mA analogue

  • Design approvals

    EN10203-3.1

  • Specialities

    Digital display
    Robust SS-housing with Ra < 0,8 micron

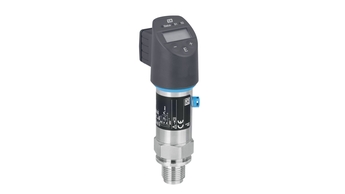

  • Successor

    PTP31B
