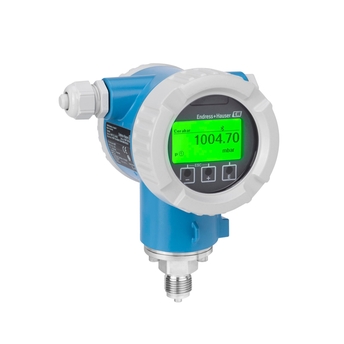

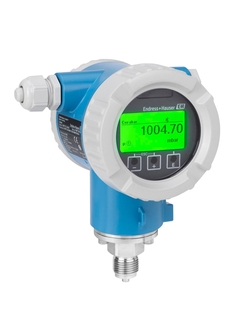

Cerabar PMC71B - pressure transmitter

Cerabar PMC71B - pressure transmitter

Smart pressure transmitter which detects process anomalies like changes in the loop characteristics

PMC71B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

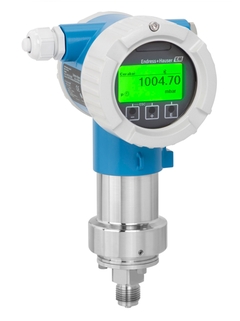

Stainless steel version

Cerabar PMC71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

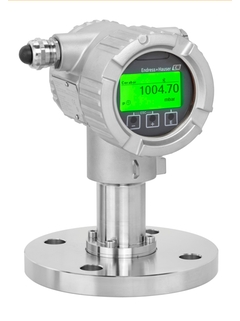

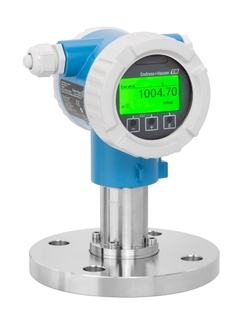

High temperature version

Specs at a glance

  • Accuracy

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.025 %

  • Process temperature

    -40°C...+150°C
    (-40°F...+302°F)

  • Pressure measuring range

    100 mbar...40 bar
    (1.5 psi...600 psi)

  • Main wetted parts

    Ceraphire ceramic
    FKM, EPDM, HNBR,
    Perlast, Kalrez, Chemraz

  • Material process membrane

    Ceramic

  • Measuring cell

    100 mbar....40 bar
    (1.5 psi...600 psi)

Field of application

This transmitter belongs to the new Cerabar generation. The device is robust and can be remotely controlled via app on a tablet using a secure Bluetooth connection. It allows condition based maintenance as well.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

  • Pressure measuring range: up to 40 bar (600 psi)

  • Fully vacuum resistant up to +150°C (302°F) process temperature

  • Accuracy: up to +/- 0.025%

Benefits

  • With Heartbeat Technology you are able to verify the health of the device while the process is running.

  • Simple indication of device status - display changes from green to red when diagnostic messages occur

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

  • Wireless control of the device in hard to reach process areas with the SmartBlue App

Extended selection

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

FLEX: Extended ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Predecessor

Success stories

  • Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase. Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase.

    High plant availability in hydrogen production

    Messer produces hydrogen in a steam reformer. The facility has a large number of protection and safety devices where pressure values play an important role.

  • In Returkraft’s large incinerator, the pressure conditions must be monitored continuously. In Returkraft’s large incinerator, the pressure conditions must be monitored continuously.

    Time saved, safety increased

    Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.

  • CNG compressor model with electric motor CNG compressor model with electric motor

    Fit for purpose instrumentation for CNG compressors

    The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
