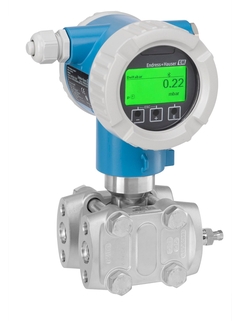

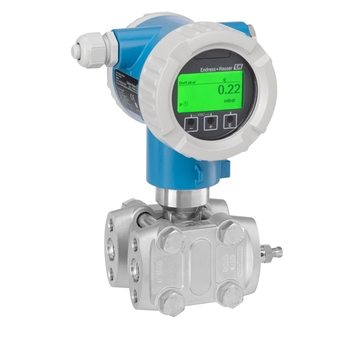

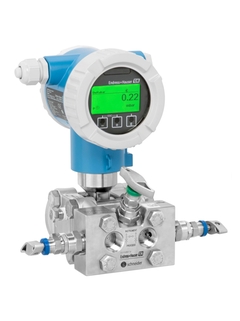

Deltabar PMD75B

Deltabar PMD75B - differential pressure transmitter

Smart pressure transmitter which detects process anomalies like plugged impulse lines

PMD75B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Deltabar PMD75B
  • F
  • L
  • E
  • X
©Endress+Hauser
Deltabar PMD75B
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.035 %

  • Max. measurement error

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.035 %

  • Measuring range

    10 mbar...250 bar
    (0.15 psi...3750 psi)

  • Process temperature

    -40°C...+110°C
    (-40°F...+230°F)

  • Pressure measuring range

    10 mbar...250 bar
    (0.15 psi...3750 psi)

  • Main wetted parts

    316L, AlloyC,
    Tantal, Monel,
    Gold

  • Max. process pressure

    420 bar (6300 psi)

  • Material process membrane

    316L, AlloyC,
    Tantal,
    Monel,
    Gold

  • Wetted materials

    316L,
    AlloyC,
    Tantal,
    Monel,
    Gold

  • Measuring cell

    10 mbar...250 bar
    (0.15 psi...3750 psi)

Field of application

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

  • Pressure measuring ranges up to 250 bar (3750 psi) (gauge/absolute) and 40 bar (600psi) (dp)

  • Static pressure up to 420bar (6300psi)

  • Accuracy: up to +/- 0.035%

Benefits

  • With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.

  • Simple indication of device status - display changes from green to red when diagnostic messages occur

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

  • Control the device wireless in hard to reach process areas with the SmartBlue App
