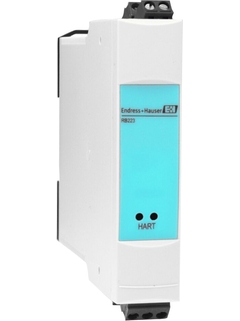

RB223
Loop powered passive barrier
One or two-channel barrier for the safe separation of 4...20 mA standard signal circuits
The RB223 passive barrier can be used to galvanically isolate active signal circuits (0 to 20 mA) in three applications:
Transmission from non-Ex to Ex areas e.g for active adjusters, controllers or indicators,
Transmission from Ex to non-Ex areas for connection of active, intrinsically safe circuits to the PLC,
Transmission from Ex to non-Ex areas for supply of intrinsically safe transmitters with non-intrinsically safe transmitter power supply.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Input
2 x analog 4...20 mA
-
Output
2 x analog 4...20 mA
-
Power Supply
Not defined
-
Quick selection
Individual configuration
-
Benefits
Compact side-by-side housing for DIN rail
Space-saving one-channel and two-channel version
No power supply necessary
International Ex approvals; Can be used up to SIL 3
Bidirectional HART® transmission
Communication sockets for HART® + integrated HART®...
-
Field of application
Separation of active 0/4 to 20 mA signals from transmitters, valves and adjusters.
