©Endress+Hauser
Successor
Metric RTD/TC thermometer with protection tube for a wide range of industrial applications
Read more
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Characteristic / Application

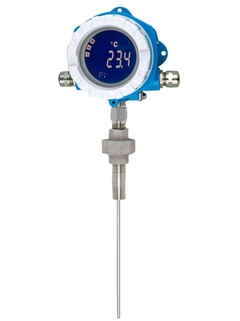

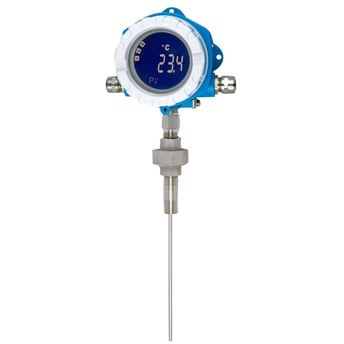

US style modular temperature assembly for heavy duty applications suitable for hazardous areas threaded process connection to use with thermowell backlit display
Thermowell / protection tube
Insert / probe
mineral insulated (MI), flexible
Max. immersion length on request
up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell
Process connection
male thread: G1/2" NPT1/2" NPT3/4" union nut: NPT1/2" M24x1.5
Operating temperature range
PT 100: -200 °C ...600 °C (-328 °F ...1.112 °F)
Max. process pressure (static)
Accuracy
class A acc. to IEC 60751 class AA acc. to IEC 60751
Response time
depending on configuration t50 = 3 s t90 = 7 s
Integration head transmitter
3 documents
Thermometer und Transmitter für die Prozessindustrie
Language:
German
Version:
04/02/2025
File size:
18.9 MB
File name:
FA00006Tde_2325.pdf
Thermometers and transmitters for the process industry
Language:
English
Version:
04/02/2025
File size:
18.8 MB
File name:
FA00006Ten_2325_interaktiv_verb.pdf
Device Type Manager (DTM) - iTEMP TMT142 - HART
Endress+Hauser, DeviceCare, 1.08.08 Endress+Hauser, FieldCare, 2.19.00 Endress+Hauser, Field Xpert SMT70, 1.08.08
Language:
Language neutral
Version:
21/07/2025
File size:
201.5 MB
File name:
EH_iTemp_TMT_142_V1_03_00.zip
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Display holder kit (3 pieces)
Drawing number
Order code
2
71310423
O-Ring 88x3 HNBR 70o Shore PTFE
Drawing number
Order code
6
71502617
Cover latch spares kit field housing
Drawing number
Order code
7
51004948
Drawing number
Order code
2+3
TMT142X-
O-Ring 18.77x1.78 HNBR 70o Shore PTFE
Drawing number
Order code
9
71502941
Drawing number
Order code
1
TMT142G-
Adapter NPT1/2/M20x1.5 cable entry
Drawing number
Order code
8
51004387
Adapter M20x1.5 exter./M24x1.5 intern.VA
Drawing number
Order code
8
51004915
Cable gland NPT1/2, D4.5-8.5 IP68
Drawing number
Order code
8
51006845
Mounting bracket SS316L, tube 1,5-3"
Drawing number
Order code
8
51007995
Blind plug M20x1.5 EEx-d+O-ring Alu
Drawing number
Order code
9
71525620
Blind plug M20x1.5 Ex-d+O-ring V4A
Drawing number
Order code
9
71525622
Blind plug G1/2" Ex-d+O-ring Alu
Drawing number
Order code
9
71525621
Blind plug G1/2" Ex-d+O-ring V4A
Drawing number
Order code
9
71525623
Blanks (blind) NPT1/2, 3.1655.53
Drawing number
Order code
9
51004490
Blanks (blind) NPT1/2 V4A
Drawing number
Order code
9
51006888
