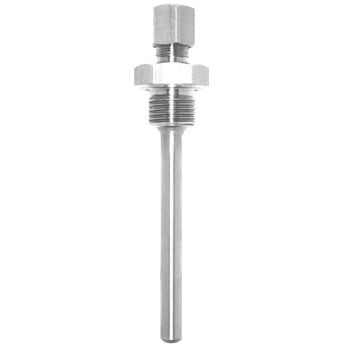

Product picture protection tube TW251

TW251
Protection tube for temperature sensors

The protection tube with built-in compression fitting allows varying types of probes to be applied

TW251
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Max. process pressure (static)

    50 bar (725 psi)

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Max. immersion length on request

    10.000 mm (393,7")

Field of application

This protection tube is well fitted with an integrated compression fitting, suitable for different industrial applications including even hygienic applications. By default, it is fitted onto pipes and vessels or tanks where attachment to the process can be threaded or welded. Due to its construction various types of temperature probes, such as compact thermometers as well as assemblies without a protection tube or cable probes, generally with an probe diameter of 6 mm, can be applied.

TW251 is a tube well fitted with an integrated compression fitting, suitable for different industrial applications including hygienic applications.

Benefits

  • The compression fitting allows for the replacement of the faulty probes without having to suspend the process underway

  • Different process connections can be selected as standard within the sales structure: Threaded (G ½", G ¼", NPT ½", ...); Weld-in (cylindrical, spheric)

  • Sleeves for the compression fitting available in PTFE or SS 316

  • The 3.1.B material certificate (according to standard EN 10204), is selectable directly from the sale structure of the product
