Specs at a glance
Accuracy
class A acc. to IEC 60751
Response time
depending on configuration
Max. process pressure (static)
at 20 °C: 500 bar (7.252 psi)
Operating temperature range
PT100 WW:
Max. immersion length on request
up to 22.5" (571 mm)
Field of application
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust thermowells and special materials. A optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. Flexible configuration possible.

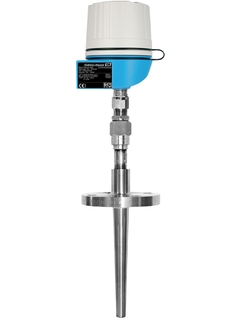

The T14 temperature sensor is a RTD assembly installed in Thermowell and designed for use in harsh environments and explosive areas, due to his FM and CSA approvals.
Chemicals
Petrochemical
Refineries
Offshore Platforms
Benefits
FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV)
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution
All iTEMP transmitters provide long term stability ≤0.05% per year
Loading alternative products
Success stories
Non-invasive thermometer streamlines calibration
Fast, non‑invasive temperature measurement without removing insulation for calibration: iTHERM SurfaceLine TM611 cuts downtime, improves safety and delivers accurate results even in hazardous areas.
Read the full story
Maximize yield, minimize downtime
Maximize yield, minimize downtime - Smart temperature monitoring in High-Pressure Acid (HPAL) Leaching processes
Read the full story
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Measuring principle
Resistance Temperature Detector
Characteristic / Application
Explosion Proof US style
Thermowell / protection tube
Insert / probe
mineral insulated (MI), flexible
Outer diameter protection tube / Insert
7/8'' (22,23 mm)
Max. immersion length on request
up to 22.5" (571 mm)
Material protection tube/ thermowell
316/316L
Process connection
flange:
Operating temperature range
PT100 WW:
Max. process pressure (static)
at 20 °C: 500 bar (7.252 psi)
Accuracy
class A acc. to IEC 60751
Response time
depending on configuration
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals
FM XP DIP
Most downloaded
T14
Compact Instructions
English version - 12/2012
Explosion proof RTD assembly in flanged thermowell
EN
01/12/2012
01/07/2007
01/03/2007
Language:
English
Version:
01/12/2012
File size:
671.9 KB
File name:
KA00237rae_1312.pdf
T13, T14 and T15
English version - 01/2023
Explosion proof RTD assemblies in thermowells with spring loaded insert
and enclosure for process industry
EN
DE ES FR
10/01/2023
13/01/2021
31/05/2018
12/05/2015
26/10/2009
Language:
English
Version:
10/01/2023
File size:
1.4 MB
File name:
TI00126REN_1623-00.pdf
25 documents
Explosion proof RTD assemblies in thermowells with spring loaded insert
EN
German Spanish French
10/01/2023
13/01/2021
31/05/2018
12/05/2015
26/10/2009
Language:
English
Version:
10/01/2023
File size:
1.4 MB
File name:
TI00126REN_1623-00.pdf
Explosion proof RTD assembly in flanged thermowell
EN
01/12/2012
01/07/2007
01/03/2007
Language:
English
Version:
01/12/2012
File size:
671.9 KB
File name:
KA00237rae_1312.pdf
iTEMP TMT72 Transmitter HART
iTEMP TMT72 Transmitter HART
Language:
English
Version:
06/05/2026
File size:
135.3 KB
File name:
Bild TMT72.pdf
iTEMP 85 FOUNDATION Fieldbus Protokoll
iTEMP 85 FOUNDATION Fieldbus Protokoll
Language:
English
Version:
06/05/2026
File size:
154 KB
File name:
Bild TMT85.pdf
EA Klemmenblock für TS211
EA Klemmenblock für TS211
Language:
English
Version:
02/12/2025
File size:
322.1 KB
File name:
EA_TS211_Klemmblock _ 7166054x _en_we.pdf
iTEMP TMT82 Transmitter HART
iTEMP TMT82 Transmitter HART
Language:
English
Version:
06/05/2026
File size:
178.9 KB
File name:
Bild TMT82.pdf
iTEMP TMT84 PROFIBUS® PA
Language:
English
Version:
06/05/2026
File size:
263.2 KB
File name:
Bild TMT84.pdf
iTEMP TMT31, Transmitter 4-20mA
iTEMP TMT31, Transmitter 4-20mA
Language:
English
Version:
01/01/2021
File size:
119.6 KB
File name:
Bild TMT31.pdf
Temperature assemblies T13, T14, T15, T53, T54, T55
Control drawing CSA (XP, DIP)
Installation notes for CSA approved apparatus
Language:
English
Version:
19/12/2022
File size:
97 KB
File name:
XA02075TEN_03.22.pdf
CSA:
Language:
English
Version:
26/08/2019
File size:
65.5 KB
File name:
160100118.pdf
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Enclosure TU401, US Style
Drawing number
Order code
F
TU401-
Drawing number
Order code
F
TA30H-
Set O-ring 74x3 75o VMQ Silicon (5 pcs.)
Drawing number
Order code
F
71600564
Drawing number
Order code
F
TMT162G-
Drawing number
Order code
F
TMT162G-
Drawing number
Order code
F
TMT162G-
Drawing number
Order code
F
TMT162X-
Drawing number
Order code
F
TMT162X-
Drawing number
Order code
F
TMT142G-
Drawing number
Order code
F
TMT142G-
Drawing number
Order code
F
TMT142X-
Drawing number
Order code
F
TMT142X-
Drawing number
Order code
F
TMT142X-
Drawing number
Order code
F
TMT142X-
Cover latch spares kit field housing
O-Ring 88x3 HNBR 70o Shore PTFE
Drawing number
Order code
F
71502617
RTD Insert TU111,General Purp,US Style
Drawing number
Order code
A
TU111-
RTD Insert TU211, Approved US Style
Drawing number
Order code
A
TU211-
Term.block DIN B (42mm) 3 term. 5 pc
Term.block DIN B (42mm) 4 term. 5 pc
Term.block DIN B (42mm) 6 term. 5 pc
Thermowell TU54, Flanged US Style
Drawing number
Order code
E
TU54-
iTEMP TMT180, Head Transmitter Pt100
iTEMP TMT31, Transmitter 4-20mA
iTEMP TMT181, Head Transmitter PCP
iTEMP TMT71, Transmitter 4-20mA
iTEMP TMT182, Head Transmitter HART
iTEMP TMT72, Transmitter HART
iTEMP TMT184, headtransmitter PA
iTEMP TMT84, Transmitter PA
iTEMP TMT82, Transmitter HART
iTEMP TMT85, Transmitter FF
Display Unit Head Transmitter
Fixing kit cpl. TMT8x/7x USA(american)
RTD Assembly T15, Spring XP US Style
Readwin 2000 Operation + Read. software
Cable gland NPT1/2, D4.5-8.5 IP68
Integrable Surge Arrester Module
Mounting bracket SS316L, tube 1,5-3"
